cardiosteth

Introduction

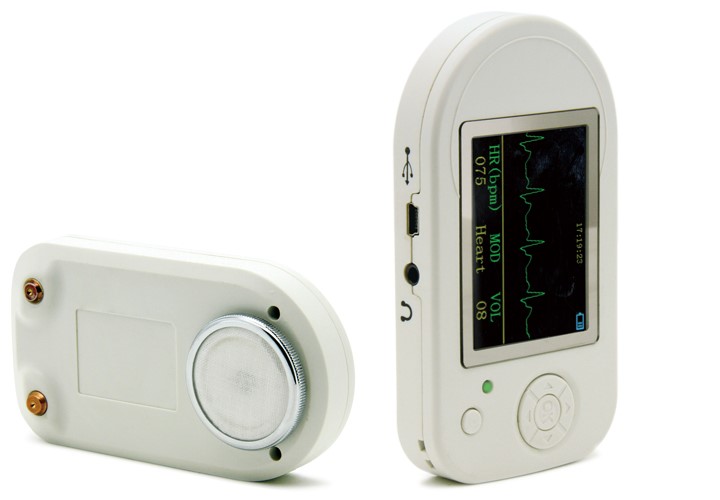

The device contains stethoscope function, ECG waveform collecting function, SpO2 and pulse rate detection, and it is suitable for Hospital, Clinic and Home use etc.

Main Features

1)  Compact, light and portable, easy to use 2)  Display of ECG waveform, heart rate, SpO2, pulse rate, pulse waveform 3)  Earphone output and volume adjustable 4)  Alarm for SpO2 and pulse rate exceeding limits 5)  Real-time detecting, data storage and review 6)  Real-time clock 7)  Recorded data can be transferred to PC 8)  PC analysis software 9)  Low power consumption

Specification

Stethoscope Heart: 20~230Hz Lung: 100Hz~800Hz H&L: 20~800Hz Heart rate Measuring range: 30bpm~300bpm Accuracy: ±2bpm or ±2% (select larger) Pulse rate Measuring range: 30bpm~250bpm Accuracy: ±2bpm or ±2% (select larger) SpO2 Measuring range: 0%~100% Accuracy: 70~100% (±2% ) <70% unspecified

Technical Details

Battery: 3.7V rechargeable lithium battery Display: 2.4” color LCD Dimension: 110mm(L)×60mm(W)×14mm(H)
